ThinkSystem SR630 V4 Rear M.2 RAID B550p-2HS SATA/NVMe Enablement Kit

See this document for information about the ThinkSystem SR630 V4 Rear M.2 RAID B550p-2HS SATA/NVMe Enablement Kit.

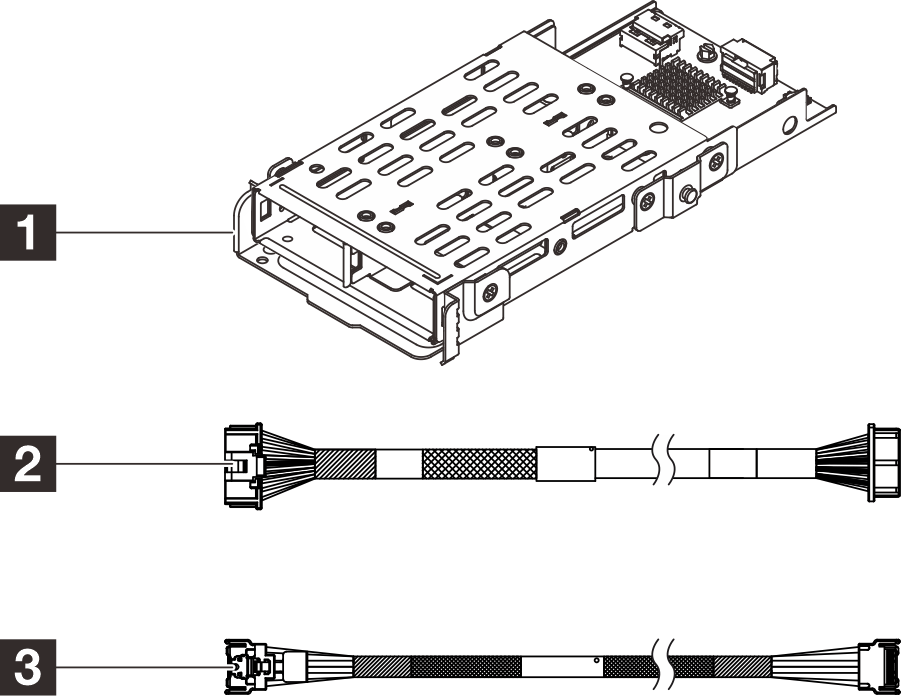

This option kit comes with the following components.

1 One rear M.2 RAID B550p module

2 One M.2 power cable, 300mm

3 One MCIO x4 to MCIO x4 cable, 310mm

NOTE

• The illustration in this document might differ slightly from your hardware.

• The break lines indicate that part of the cable is hidden in the illustration. Refer to the information in this document for the actual cable length.

• To make a rear M.2 drive assembly, match this option kit with two units of one of the following options:

  • "ThinkSystem M.2 VA 480GB Read Intensive NVMe HS SSD"
  • "ThinkSystem M.2 VA 960GB Read Intensive NVMe HS SSD"
  • "ThinkSystem M.2 VA 1.92TB Read Intensive NVMe HS SSD"

Option installation

• To install the option, refer to:

  • "Install the rear M.2 riser cage and drive backplane" in SR630 V4 User Guide

  • "Internal cable routing" in SR630 V4 User Guide

• For the latest technical information including firmware and driver downloads, go to Lenovo Data Center Support.
