ThinkSystem SR650/a V4 8x2.5" NVMe x1/x2 Gen5 Backplane Option Kit

See this document for information about the ThinkSystem SR650/a V4 8x2.5" NVMe x1/x2 Gen5 Backplane Option Kit.

The option kit comes with the following components.

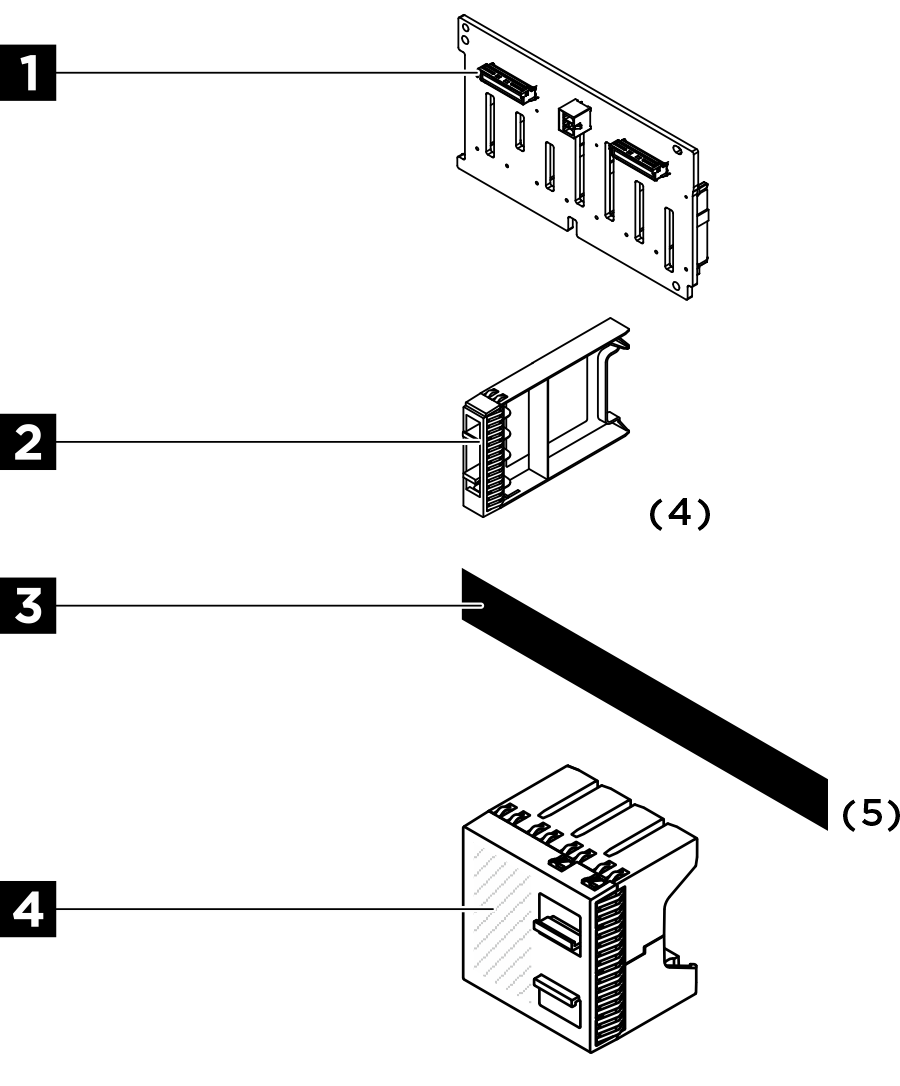

ThinkSystem SR650/a V4 8x2.5-inch NVMe x1/x2 Gen5 Backplane Option Kit

1 One 8x2.5-inch NVMe backplane​

2 Four 2.5-inch drive bay fillers (1-bay, for SR650 V4 / SR650a V4)​

3 Five labels​

  • Two BP1/BP2 NVMe labels for SR650 V4

  • One BP3 NVMe label for SR650 V4

  • One BP3 drive numbering label for SR650 V4

  • One NVMe label for SR650a V4

4 One 2.5-inch drive bay filler (4-bay, for SR650 V4 only)​

NOTE
  • The illustration in this document might differ slightly from your hardware.
  • SR650a V4 supports 2.5-inch drive bay filler (1-bay) only. Make sure to install supported fillers to your server.

Option installation

  • To install the option, refer to the applicable user guide:
Server modelHardware installation
SR650 V4Install the front drive backplane
SR650a V4Install the 2.5-inch drive cage and drive backplane
