ThinkSystem SR650/a V4 Front M.2 RAID B550d-2HS SATA/NVMe Enablement Kit
See this document for information about the ThinkSystem SR650/a V4 Front M.2 RAID B550d-2HS SATA/NVMe Enablement Kit.

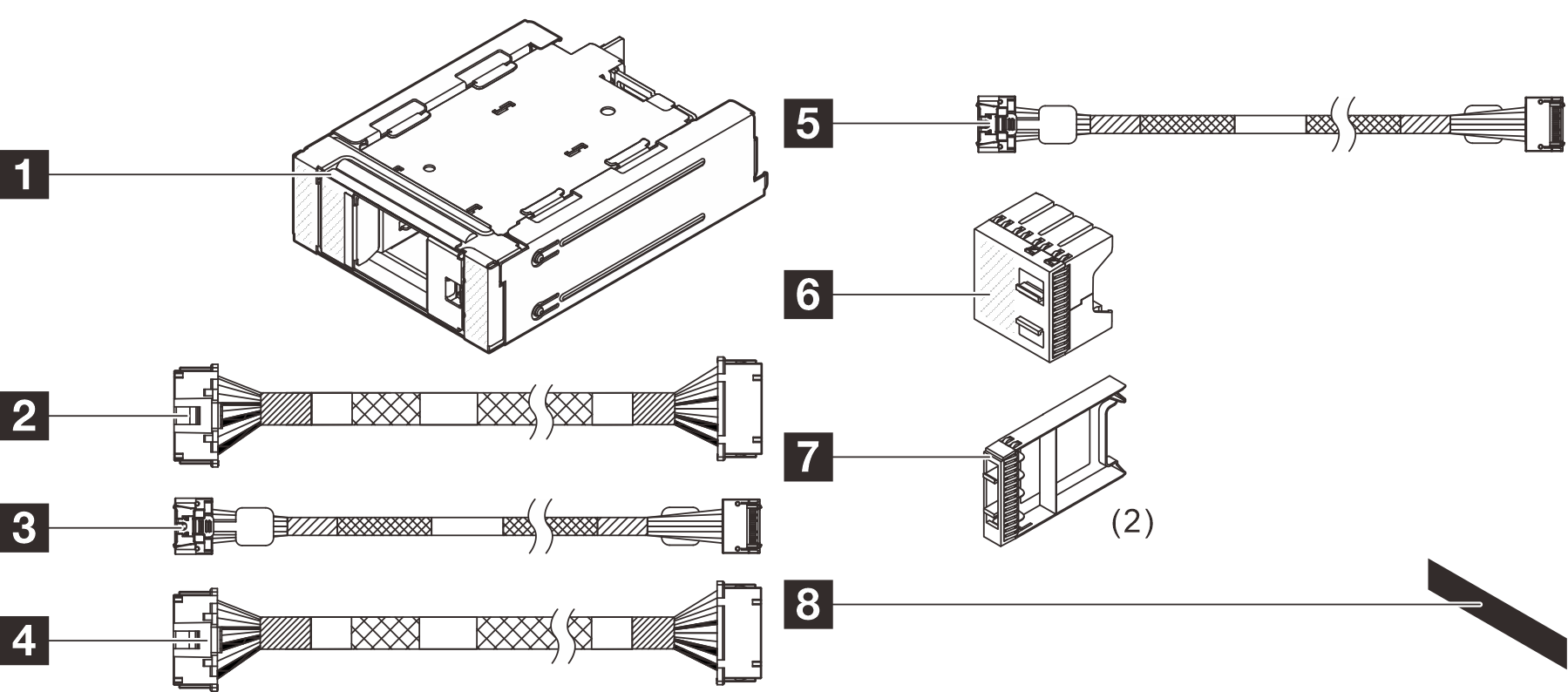

This option kit comes with the following components.
1 One front M.2 drive cage and backplane assembly
- One front M.2 boot backplane
- One front M.2 drive cage frame
- One front M.2 controller board
- One front M.2 drive cage
2 One power cable, 700mm
3 One MCIO x4 to MCIO x4 cable, 650mm
4 One power cable, 1000mm
5 One MCIO x4 to MCIO x4 cable, 900mm
6 One 4-bay 2.5" drive filler
7 Two 1-bay 2.5" drive fillers
8 Drive sequence/type label
- One ThinkSystem SR650 V4 front M.2 (0-1) label, horizontal
NOTE
-
The illustration in this document might differ slightly from your hardware.
-
The break lines indicate that part of the cable is hidden in the illustration. Refer to the information in this document for the actual cable length. -
To make a front M.2 drive assembly, match this option kit with two units of one of the following options:
Option installation
- To install the option, refer to
| Server model | Hardware installation | Internal cable routing |
|---|---|---|
| SR650 V4 | Install the front M.2 drive cage and drive backplanes | Internal cable routing |
| SR650a V4 | Install the front M.2 drive cage and drive backplanes | Internal cable routing |
- For the latest technical information including firmware and driver downloads, go to Lenovo Data Center Support.
