ThinkSystem SR650/a V4 Rear M.2 RAID B550p-2HS SATA/NVMe Enablement Kit

See this document for information about the ThinkSystem SR650/a V4 Rear M.2 RAID B550p-2HS SATA/NVMe Enablement Kit.

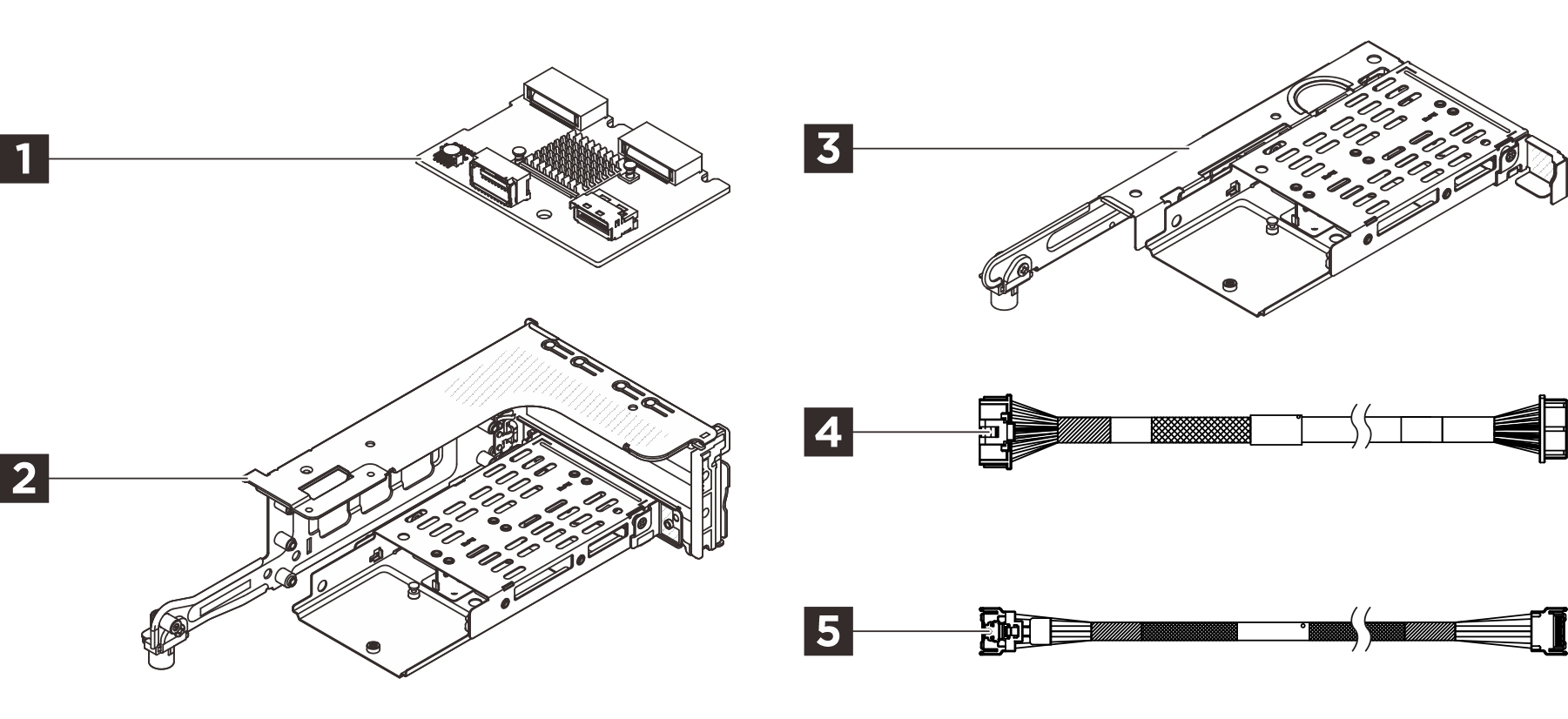

The option kit comes with the following components.

1 One rear M.2 backplane

2 One 3FH M.2 riser cage

3 One 1FH M.2 riser cage

4 One M.2 power cable, 300 mm

5 One M.2 signal cable, MCIO x4 to MCIO x4, 310 mm

NOTE

• The illustration in this document might differ slightly from your hardware.

• The break lines indicate that part of the cable is hidden in the illustration. Refer to the information in this document for the actual cable length.

• To make a rear M.2 drive assembly, match this option kit with two units of one of the following options:

  • "ThinkSystem M.2 VA 480GB Read Intensive NVMe HS SSD"
  • "ThinkSystem M.2 VA 960GB Read Intensive NVMe HS SSD"
  • "ThinkSystem M.2 VA 1.92TB Read Intensive NVMe HS SSD"

Option installation

• To install the option, refer to the applicable user guide:

Server model	Hardware installation	Internal cable routing
SR650 V4	Install the rear M.2 riser cage and drive backplane	Internal cable routing
SR650a V4	Install the rear M.2 riser cage and drive backplane	Internal cable routing

• For the latest technical information including firmware and driver downloads, go to Lenovo Data Center Support.
