ThinkSystem SR650 V4 8x2.5" SAS/SATA Middle Backplane Option Kit

See this document for information about the ThinkSystem SR650 V4 8x2.5" SAS/SATA Middle Backplane Option Kit.

This option kit comes with the following components.

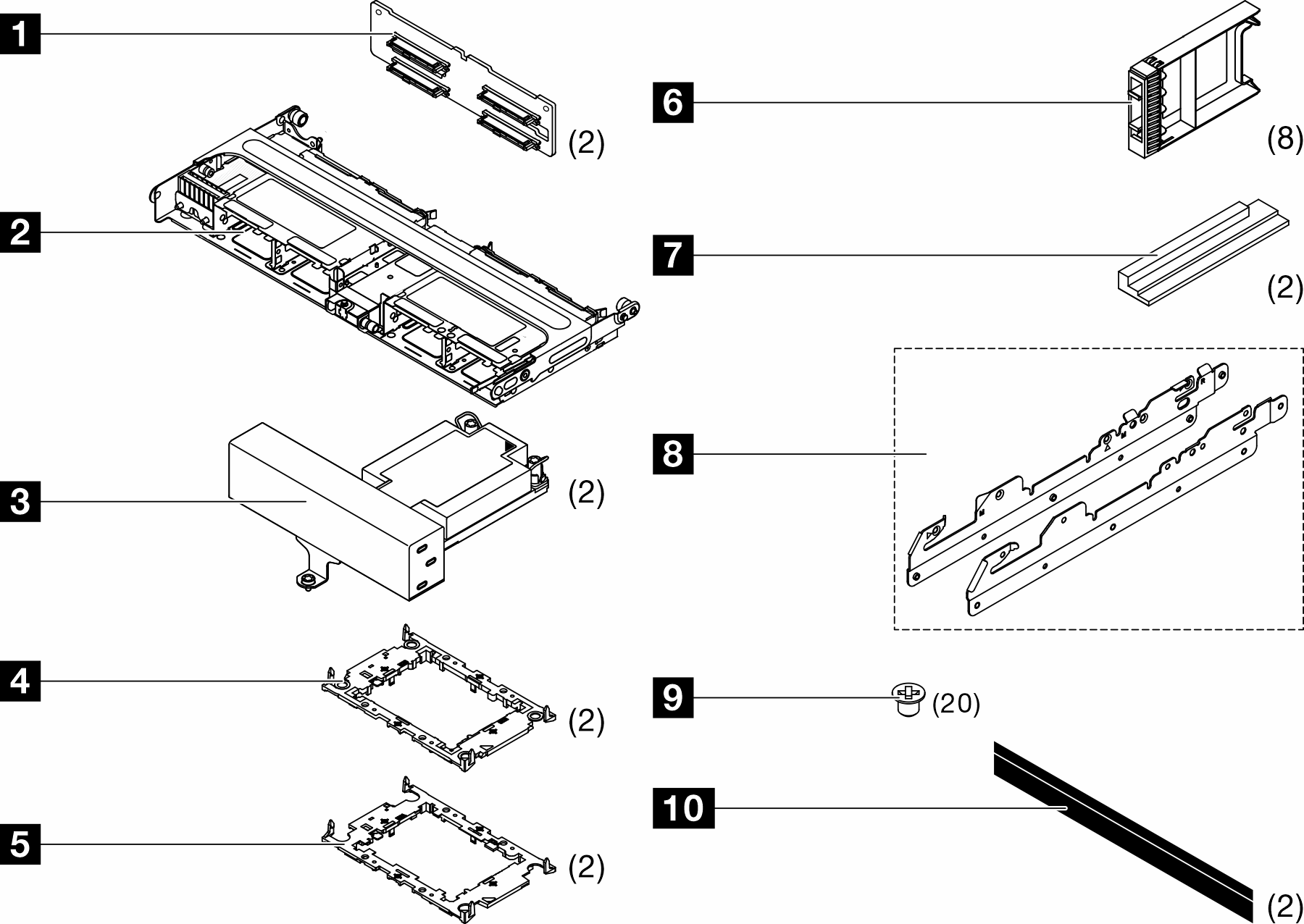

ThinkSystem SR650 V4 8x2.5-inch SAS/SATA Middle Backplane Option Kit

1 Two 4x2.5" SAS/SATA middle/rear backplanes​

2 One 8x2.5" middle drive cage​

3 Two performance heatsinks​

4 Two GNR XCC CPU HS clips​

5 Two BHS SP HCC/LCC CPU HS clips​

6 Eight 1-bay 2.5" drive fillers​

7 Two PLV sponges​

8 Two middle brackets​

9 Twenty M3 L3.5 screws​

10 Drive sequence/type labels​

  • One SAS/SATA drive (40-43) label
  • One SAS/SATA drive (44-47) label
NOTE

The illustration in this document might differ slightly from your hardware.

Option installation

Option installation
To install the option, refer to “Hardware replacement procedures” in the server User Guide, which is available at Lenovo Docs https://pubs.lenovo.com.
For the latest technical information including firmware and driver downloads, go to Lenovo Data Center Support website https://datacentersupport.lenovo.com.
