ThinkSystem SR850 V4/SR860 V4 Rear M.2 RAID B550p-2HS SATA/NVMe Enablement Kit

See this document for information about the ThinkSystem SR850 V4/SR860 V4 Rear M.2 RAID B550p-2HS SATA/NVMe Enablement Kit.

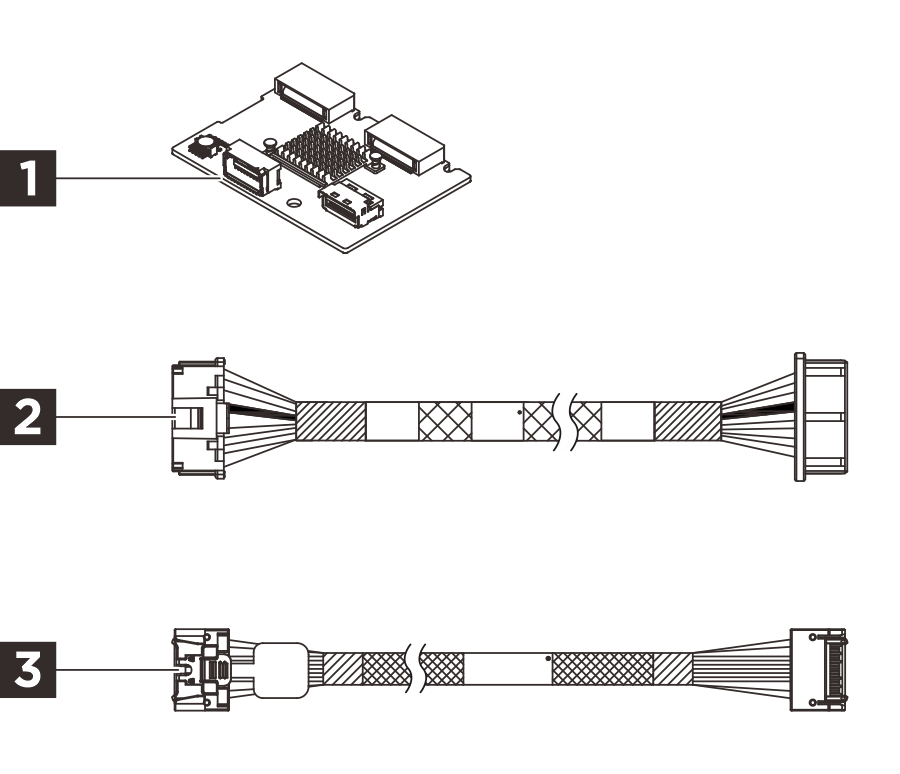

This option kit comes with the following components.

1 One M.2 backplane

2 One power cable, 520mm

3 One MCIO x4 to MCIO x4 cable, 520mm

NOTE

• The illustration in this document might differ slightly from your hardware.
• The break lines indicate that part of the cable is hidden in the illustration. Refer to the information in this document for the actual cable length.
• To make a rear M.2 drive assembly, match this option kit with two units of one of the following options:
  • "ThinkSystem M.2 VA 480GB Read Intensive NVMe HS SSD"
  • "ThinkSystem M.2 VA 960GB Read Intensive NVMe HS SSD"
  • "ThinkSystem M.2 VA 1.92TB Read Intensive NVMe HS SSD"

Option installation

• To install the option, refer to

  Server model	Hardware installation
  SR860 V4	Install the rear M.2 drive cage and backplane
  SR850 V4	Install the rear M.2 drive cage and backplane

• For the latest technical information including firmware and driver downloads, go to Lenovo Data Center Support.
