V4 1U/2U NVIDIA ConnectX-8 Aux Cable Kit

See this document for information about the V4 1U/2U NVIDIA ConnectX-8 Aux Cable Kit.

This option kit comes with the following component.

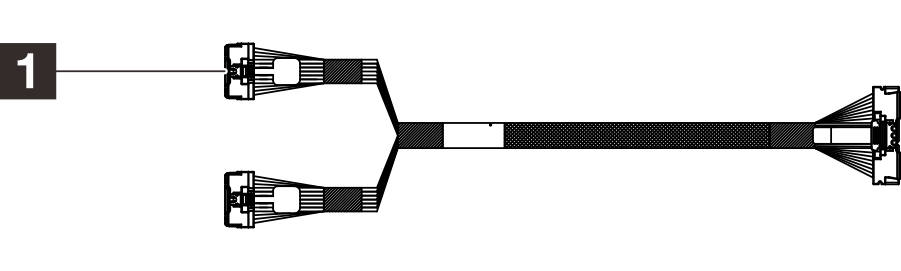

1 One MTK x8*2 to MCIO x16 cable, 300/300mm

NOTE

• The illustration in this document might differ slightly from your hardware.

• The break lines indicate that part of the cable is hidden in the illustration. Refer to the information in this document for the actual cable length.

Option installation

• To install the option, refer to

  Server model	Hardware installation	Internal cable routing
  SR630 V4	Install a PCIe adapter	Internal cable routing
  SR650 V4	Install a rear PCIe adapter and riser card	Internal cable routing
  SR650a V4	Install a rear PCIe adapter and riser card	Internal cable routing

• For the latest technical information including firmware and driver downloads, go to Lenovo Data Center Support.

Option installation
To install the option, refer to “Hardware replacement procedures” in the server User Guide, which is available at Lenovo Docs https://pubs.lenovo.com.
For the latest technical information including firmware and driver downloads, go to Lenovo Data Center Support website https://datacentersupport.lenovo.com.
