ThinkSystem SR650/a V4 2.5" Chassis Front NVMe x1 Cable Kit

See this document for information about the ThinkSystem SR650/a V4 2.5" Chassis Front NVMe x1 Cable Kit.

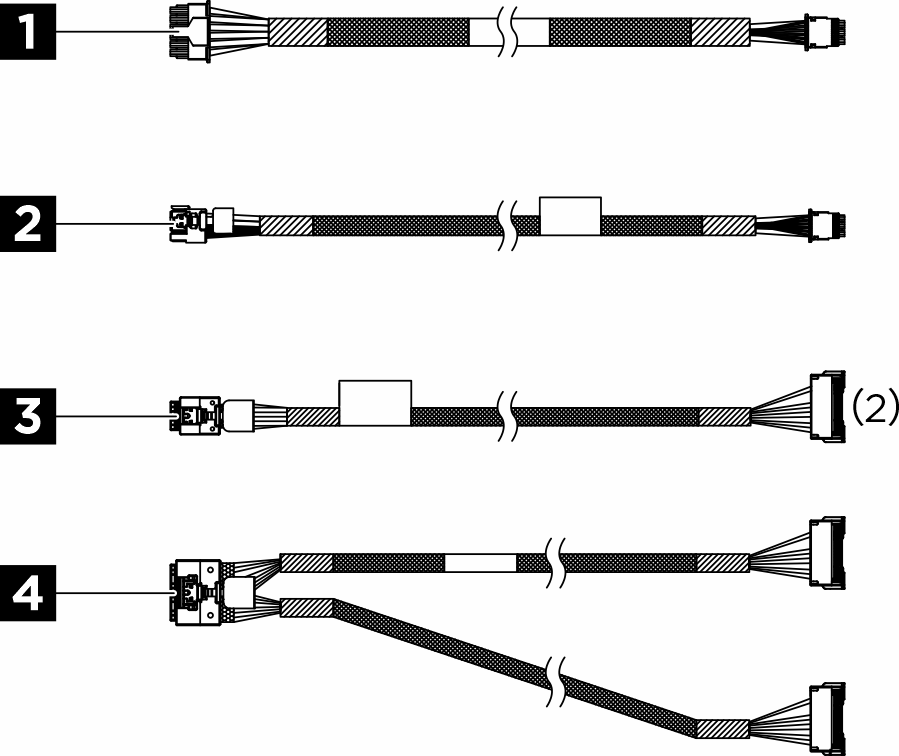

The option kit comes with the following components.

1 One power cable, 250 mm

2 One power cable, 900 mm

3 Two SlimSAS x4 to MCIO x8 cables, 250 mm

4 One SlimSAS x8 to MCIO x8*2 cable, 1020/1020 mm

NOTE

• The illustration in this document might differ slightly from your hardware.

• The break lines indicate that part of the cable is hidden in the illustration. Refer to the information in this document for the actual cable length.

Option installation

• To install the option, refer to the applicable user guide:

Server model	Hardware installation	Internal cable routing
SR650 V4	Install the front drive backplane	Internal cable routing
SR650a V4	Install the 2.5-inch drive cage and drive backplane	Internal cable routing

• For the latest technical information including firmware and driver downloads, go to Lenovo Data Center Support.
