ThinkSystem SR650 V4/SR650a V4 960W-32i RAID Cable Kit
See this document for information about the ThinkSystem SR650 V4/SR650a V4 960W-32i RAID Cable Kit.

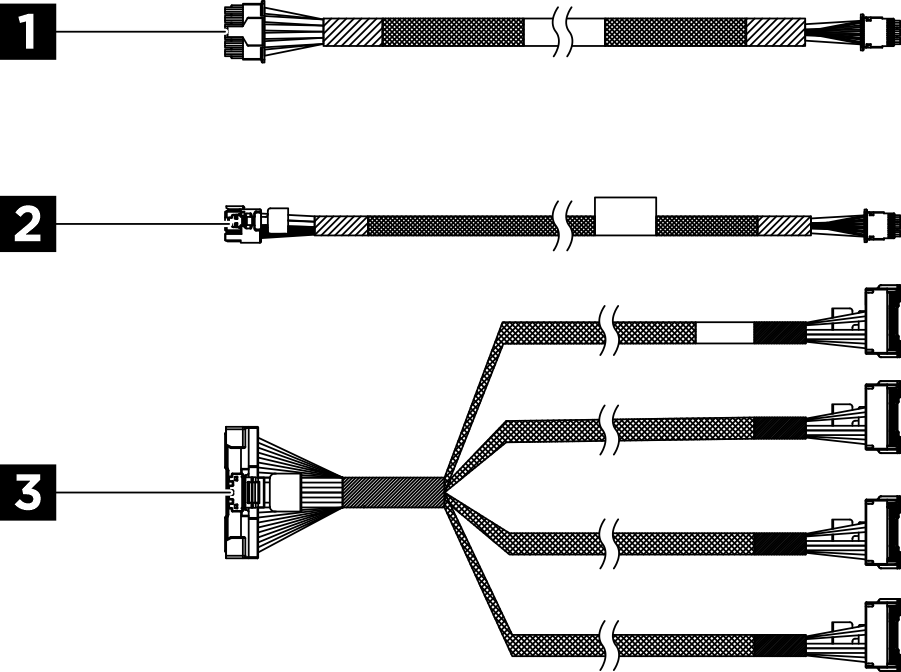

The option kit comes with the following components.
1 One power cable, 250 mm
2 One power cable, 900 mm
3 One MCIO x16 to MCIO x8*4 cable, 1100/1100/1100/1100 mm
NOTE
-
The illustration in this document might differ slightly from your hardware.
-
The break lines indicate that part of the cable is hidden in the illustration. Refer to the information in this document for the actual cable length.
Option installation
- To install the option, refer to the applicable user guide:
| Server model | Hardware installation | Internal cable routing |
|---|---|---|
| SR650 V4 | Install the front drive backplane | Internal cable routing |
| SR650a V4 | Install the 2.5-inch drive cage and drive backplane | Internal cable routing |
- For the latest technical information including firmware and driver downloads, go to Lenovo Data Center Support.
