ThinkSystem SR650a V4 2.5" Chassis Front BP1 NVMe Cable Kit

See this document for information about the ThinkSystem SR650a V4 2.5" Chassis Front BP1 NVMe Cable Kit.

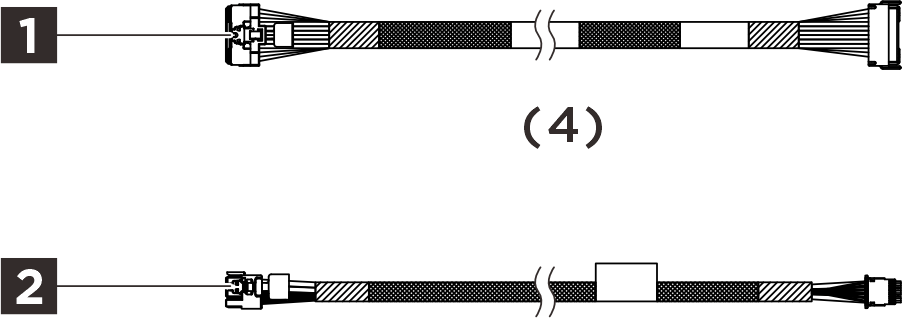

The option kit comes with the following components.

1 Four MTK x8 to MCIO x8 cables, 800 mm

2 One power cable, 900 mm

NOTE

• The illustration in this document might differ slightly from your hardware.
• The break lines indicate that part of the cable is hidden in the illustration. Refer to the information in this document for the actual cable length.

Option installation

• To install the option, refer to:

  • "Install the 2.5-inch drive cage and drive backplane" in SR650a V4 User Guide
  • "Internal cable routing" in SR650a V4 User Guide

• For the latest technical information including firmware and driver downloads, go to Lenovo Data Center Support.

Option installation
To install the option, refer to “Hardware replacement procedures” in the server User Guide, which is available at Lenovo Docs https://pubs.lenovo.com.
For the latest technical information including firmware and driver downloads, go to Lenovo Data Center Support website https://datacentersupport.lenovo.com.
