ThinkSystem SR850 V4 8x2.5-inch Backplane NVMe Cable Kit
See this document for information about the ThinkSystem SR850 V4 8x2.5-inch Backplane NVMe Cable Kit.

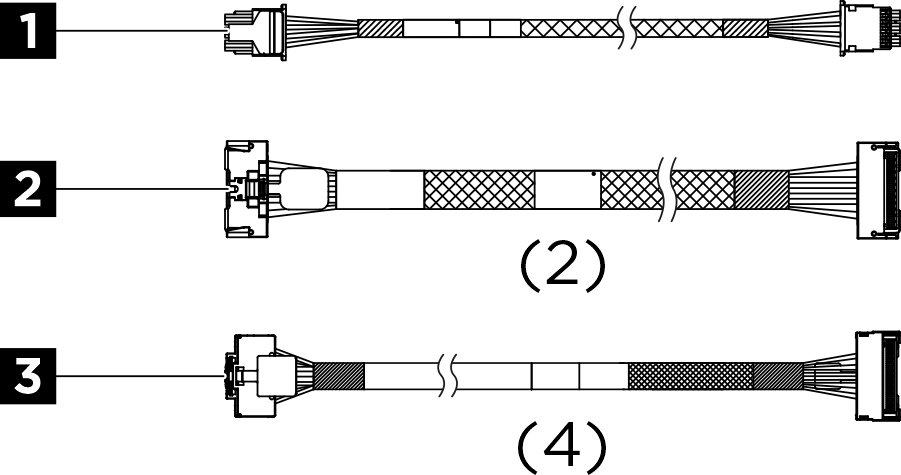

This option kit comes with the following components.
1 One 6P+6S to 6P+6S cable (150 mm)
2 Two MCIO x8 to MCIO x8 cables (420 mm)
3 Four Swift x8 to MCIO x8 cables (150 mm)
NOTE
-
The illustration in this document might differ slightly from your hardware.
-
The break lines indicate that the cable is not shown in its full length. Refer to the information in this document for the actual cable length.
Option installation
- To install the option, refer to "Internal cable routing" in SR850 V4 User Guide
- For the latest technical information including firmware and driver downloads, go to Lenovo Data Center Support.
| Option installation | |
|---|---|
| To install the option, refer to “Hardware replacement procedures” in the server User Guide, which is available at Lenovo Docs https://pubs.lenovo.com. | |
| For the latest technical information including firmware and driver downloads, go to Lenovo Data Center Support website https://datacentersupport.lenovo.com. | |
First Edition (May 2021)
© Copyright Lenovo 2021.
