ThinkSystem SR650/a V4 Left Rack Latch with USB/MiniDP Option kit

See this document for information about the ThinkSystem SR650/a V4 Left Rack Latch with USB/MiniDP Option kit.

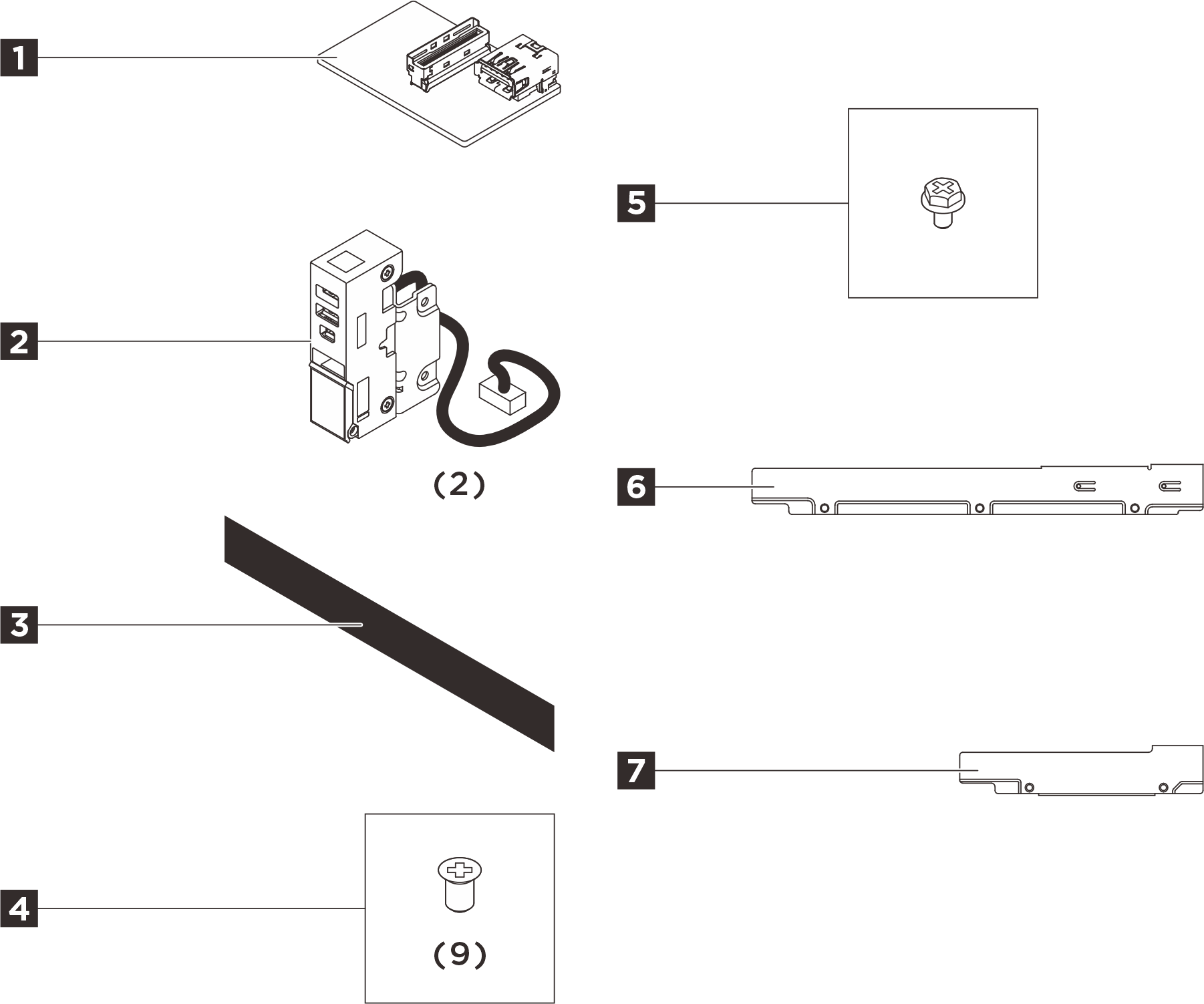

The option kit comes with the following components.

ThinkSystem SR650/a V4 Left Rack Latch with USB/MiniDP Option kit

1 One USB I/O board​

2 Two left rack latches with USB/MiniDP​

3 One ThinkSystem logo label​

4 Nine M3.5 screws for cable retainers (four for SR650 V4, five for SR650a V4)​

5 One M3 screw for USB I/O board​

6 One long cable retainer for SR650a V4​

7 One short cable retainer for SR650 V4​

NOTE
  • The illustration in this document might differ slightly from your hardware.

Option installation

  • To install the option, refer to the applicable user guide:
Server modelHardware installation
SR650 V4Install the rack latches
SR650a V4Install the rack latches
Option installation
To install the option, refer to “Hardware replacement procedures” in the server User Guide, which is available at Lenovo Docs https://pubs.lenovo.com.
For the latest technical information including firmware and driver downloads, go to Lenovo Data Center Support website https://datacentersupport.lenovo.com.
