ThinkSystem SR630 V4 M.2 RAID B540d-2HS SATA/NVMe Enablement Kit

如需 ThinkSystem SR630 V4 M.2 RAID B540d-2HS SATA/NVMe Enablement Kit 的相關資訊，請參閱本文件。

此選配產品套件隨附下列元件。

ThinkSystem SR630 V4 M.2 RAID B540d-2HS SATA/NVMe Enablement Kit

1 一個 M.2 RAID B540d 模組​

2 一條 MCIO x4 至 MCIO x4 纜線，650 公釐​

3 一條 M.2 電源線，700 公釐​

附註
  • 本文件中的圖解可能與您的硬體略有不同。
  • Cable Breakline 折斷線表示圖中隱藏了部分纜線。如需瞭解實際纜線長度，請參閱本文件中的資訊。
  • 若要製作前方/後方 M.2 硬碟組件，請將此選配產品套件與以下其中兩個選配產品搭配："ThinkSystem V4 Hot Swap M.2 SATA/NVMe Drive Assembly Kit"
  • M.2 RAID B540d 模組可直接用於 E3.S 機槽機箱。如果要用於 2.5 吋機槽機箱，請卸下其最外層的配接卡匣，直到模組如下圖所示。

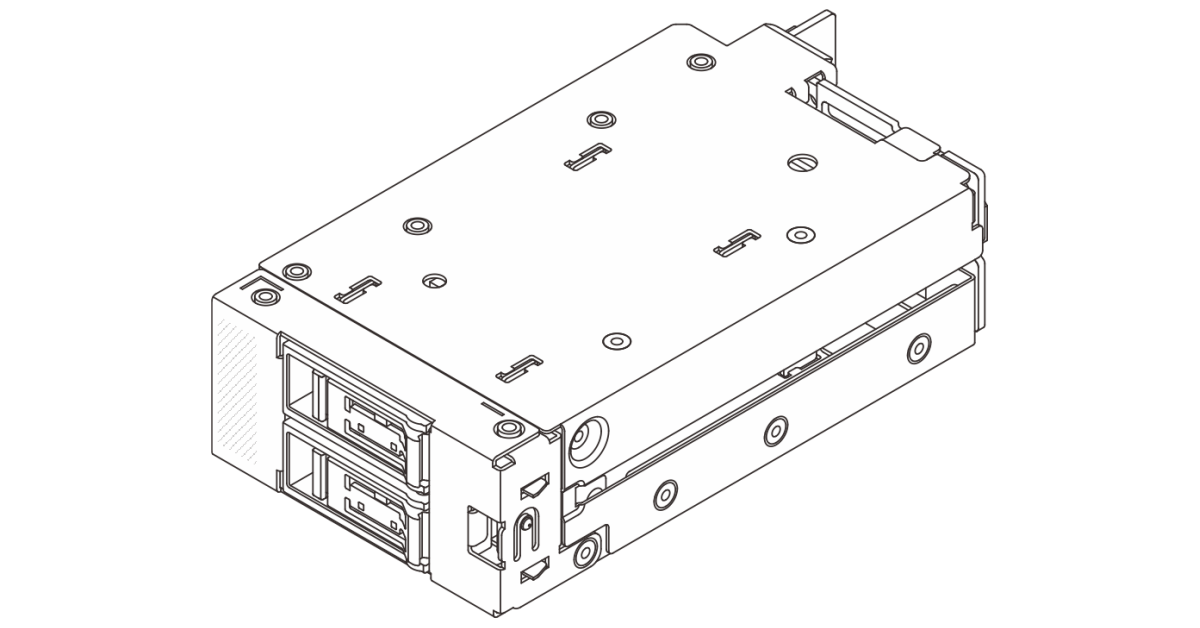

    The module for a 2.5-inch drive bay chassis

選配產品安裝

Option installation
To install the option, refer to “Hardware replacement procedures” in the server documentation. Search for your server and click on its document URL at ThinkSystem server product web page. https://pubs.lenovo.com/
For the latest technical information including firmware and driver downloads, go to Lenovo Data Center Support website. https://datacentersupport.lenovo.com
